Power Distribution Board 6000W
The BP73H4M6000 is a 3+1 redundant power distribution board for CRPS modules of 2000 W or below (1600, 1300 and 800 W compatible). It breaks out one ATX, three CPU, three HDD and 17 GPU connectors — ten at 600 W and seven at 450 W — plus PMBus and a reset header.
Redundancy3+1
Rated power6000W
GPU17×
Applications
Configuration
Redundancy3+1
Module power≤ 2000 W per module
Compatible modules1600 / 1300 / 800 W
| Configuration | |
|---|---|
| Redundancy | 3+1 |
| Module power | ≤ 2000 W per module |
| Compatible modules | 1600 / 1300 / 800 W |

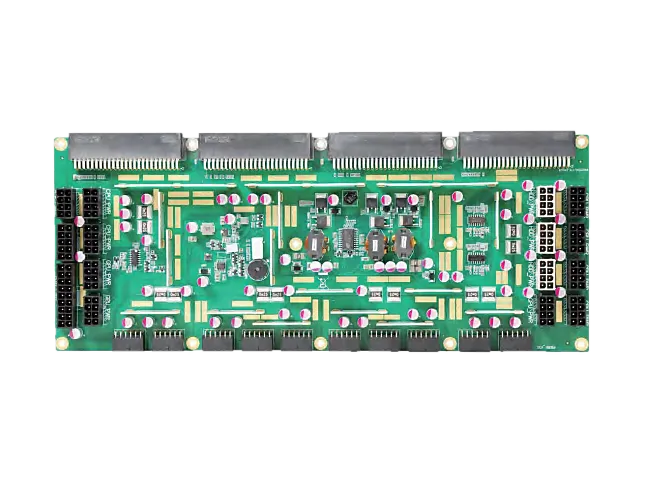

Connectors
- ×1ATX
- ×3CPU
- ×3HDD
- ×17GPU10 × 600 W + 7 × 450 W
- ×1PMBus
- ×1RST
What is the MOQ for this platform?
500 units for the standard build. Custom cable looms, housing colour or private-label plates start at 1,000 units.
Can the connector configuration be changed?
Yes. Connector count, gauge, sleeve colour and cable length are configurable at the ODM stage; drawings are issued for approval before tooling.
What is the lead time?
Samples ship in 10–15 working days. Volume production is 30–45 days from PO, subject to component allocation.
