BP73V2M2000 · 4:324-frame sequence pending
CRPS PSU Cage 2000W
The BP73V2M2000 is a 1+1 redundant CRPS PSU cage for modules of 2000 W or below (1600, 1300 and 800 W compatible). Its backplane provides one ATX, three CPU, four HDD and two 600 W GPU connectors, with PMBus and a combined reset-TTL-LED header.
Redundancy1+1
Rated power2000W
GPU2×
Applications
Configuration
Redundancy1+1
Module power≤ 2000 W
Compatible modules1600 / 1300 / 800 W
| Configuration | |
|---|---|
| Redundancy | 1+1 |
| Module power | ≤ 2000 W |
| Compatible modules | 1600 / 1300 / 800 W |

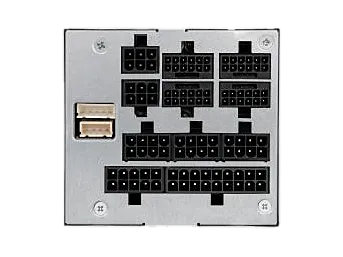

Connectors
- ×1ATX
- ×3CPU
- ×4HDD
- ×2GPU600 W each
- ×1PMBus
- ×1RST-TTL-LED
What is the MOQ for this platform?
500 units for the standard build. Custom cable looms, housing colour or private-label plates start at 1,000 units.
Can the connector configuration be changed?
Yes. Connector count, gauge, sleeve colour and cable length are configurable at the ODM stage; drawings are issued for approval before tooling.
What is the lead time?
Samples ship in 10–15 working days. Volume production is 30–45 days from PO, subject to component allocation.
