CRPS PSU Cage 1300W
A 1+1 redundant CRPS PSU cage for modules of 1300 W or below (800 W and 550 W compatible). The backplane breaks out one ATX, two CPU, three HDD and four 450 W GPU connectors, plus PMBus, reset-TTL and LED headers.
Redundancy1+1
Rated power1300W
GPU4×
Applications
Configuration
Redundancy1+1
Module power≤ 1300 W
Compatible modules800 / 550 W
| Configuration | |
|---|---|
| Redundancy | 1+1 |
| Module power | ≤ 1300 W |
| Compatible modules | 800 / 550 W |

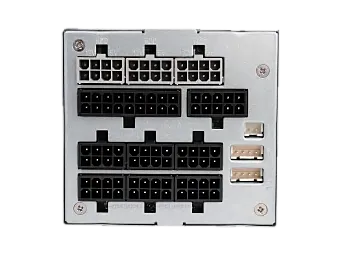

Connectors
- ×1ATX
- ×2CPU
- ×3HDD
- ×4GPU450 W each
- ×1PMBus
- ×1RST-TTL
- ×1LED
What is the MOQ for this platform?
500 units for the standard build. Custom cable looms, housing colour or private-label plates start at 1,000 units.
Can the connector configuration be changed?
Yes. Connector count, gauge, sleeve colour and cable length are configurable at the ODM stage; drawings are issued for approval before tooling.
What is the lead time?
Samples ship in 10–15 working days. Volume production is 30–45 days from PO, subject to component allocation.
